IS Insulating Sticks

Easy and safe working

Cost-effective since the application of different supporting heads allows universal use
Easy handling

Detalles

The handle of IS STK insulating sticks can be easily extended via the plug-in coupling.

lorem ipsum — The handle of IS STK insulating sticks can be easily extended via the plug-in coupling.

IS SQ insulating stick fitted with SSK SQ switching stick head. Black knurled nut for additional locking on the insulating stick.

IS SK insulating stick fitted with SSK M12 switching stick head.

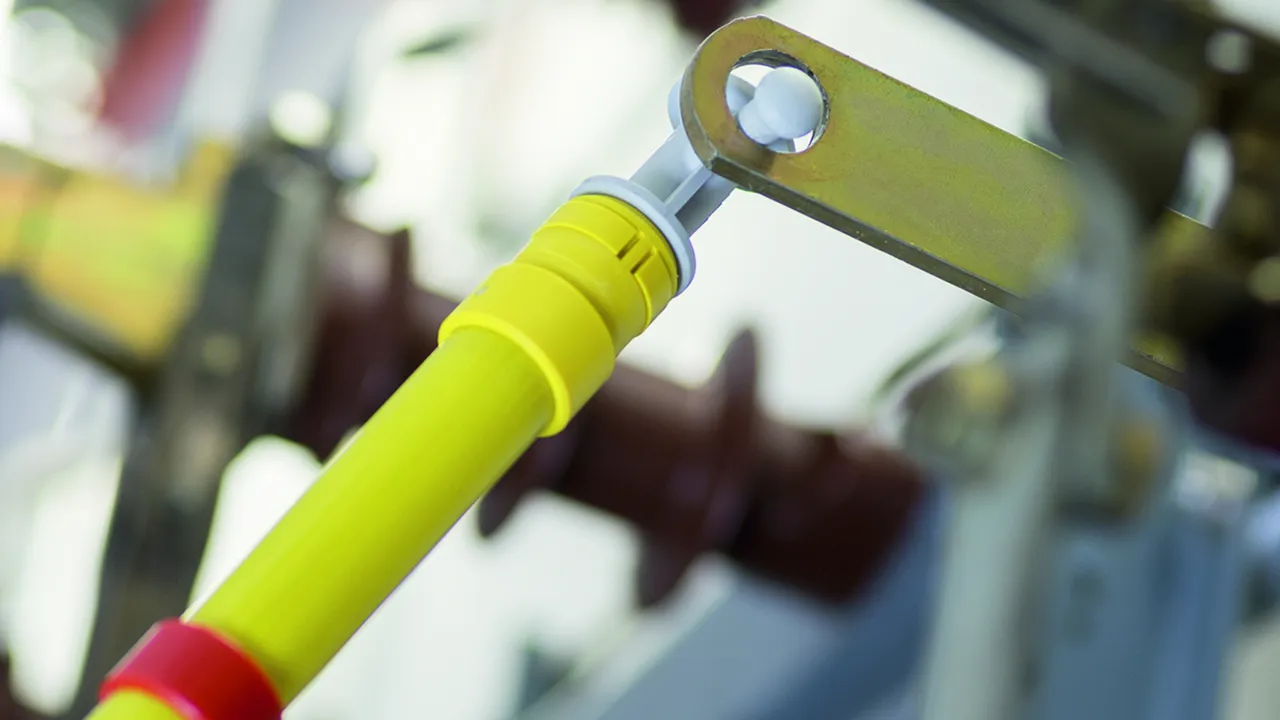

IS SK insulating stick used for clamps with hexagon shaft of earthing and short-circuiting devices.

Insulating Stick, Hexagon Shaft

Operating head with spring locking mechanism and M12 threaded bushing

Can be used as switching and operating stick by attaching a SSK M12 switching stick head
Can be used as earthing stick
Handle closed with end cap

2 Productos

N.º art. 766001 IS 36 SK 1000

GTIN 4013364017825, N.º de arancel aduanero (EU): 82055980, Peso bruto: 916.00 g, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Datos técnicos

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1000 mm
Insertion depth (I_O )	175 mm
For use at	^

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1000 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	300 mm
Insertion depth (I_O )	175 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	Hexagon shaft
Anti-rotation plug-in coupling including end fitting	No
Type of device	Insulating stick

Se ha añadido el artículo 766001 a favoritos.

Ir a favoritos

El artículo 766001 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 766002 IS 36 SK 1500

GTIN 4013364017832, N.º de arancel aduanero (EU): 82055980, Peso bruto: 1610.00 g, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Datos técnicos

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1500 mm
Insertion depth (I_O )	475 mm
For use at	^

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1500 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	500 mm
Insertion depth (I_O )	475 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	Hexagon shaft
Anti-rotation plug-in coupling including end fitting	No
Type of device	Insulating stick

Se ha añadido el artículo 766002 a favoritos.

Ir a favoritos

El artículo 766002 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

Insulating Stick, T Pin Shaft

Operating head with spring-loaded bayonet coupling

Can be used as switching and operating stick by attaching a SSK SQ switching stick head
Can be used as operating stick for inserting insulating protective shutters
Can be used as earthing stick
Handle closed with end cap

3 Productos

N.º art. 766311 IS 36 SQ 1000

GTIN 4013364017856, N.º de arancel aduanero (EU): 82055980, Peso bruto: 919.00 g, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Datos técnicos

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1025 mm
Insertion depth (I_O )	150 mm
For use at	^
^*) Max. shutter weight when inserting insulating protective shutters

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1025 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	350 mm
Insertion depth (I_O )	150 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	No
Type of device	Insulating stick
^*) Max. shutter weight when inserting insulating protective shutters

Se ha añadido el artículo 766311 a favoritos.

Ir a favoritos

El artículo 766311 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 766315 IS 36 SQ 1500

GTIN 4013364008281, N.º de arancel aduanero (EU): 82055980, Peso bruto: 1620.00 g, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Datos técnicos

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1525 mm
Insertion depth (I_O )	500 mm
For use at	^
^*) Max. shutter weight when inserting insulating protective shutters

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1525 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	500 mm
Insertion depth (I_O )	500 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	No
Type of device	Insulating stick
^*) Max. shutter weight when inserting insulating protective shutters

Se ha añadido el artículo 766315 a favoritos.

Ir a favoritos

El artículo 766315 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 766312 IS 72.5 SQ SN7743

GTIN 4013364311985, N.º de arancel aduanero (EU): 82055980, Peso bruto: 1040.00 g, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Datos técnicos

Nominal voltage (U_N )	1 ... 72.5 kV
Total length (l_G )	1300 mm
Insertion depth (I_O )	90 mm
For use at	^
^*) Max. shutter weight when inserting insulating protective shutters

Nominal voltage (U_N )	1 ... 72.5 kV
Total length (l_G )	1300 mm
Insulating clearance (l_I )	900 mm
Handle length (I_H )	310 mm
Insertion depth (I_O )	90 mm
Standard (insulating stick)	E DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	No
Type of device	Insulating stick
^*) Max. shutter weight when inserting insulating protective shutters

Se ha añadido el artículo 766312 a favoritos.

Ir a favoritos

El artículo 766312 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

Insulating Stick, Hexagon Shaft, Plug-in Coupling

Operating head with spring locking mechanism and M12 threaded bushing

Can be used as switching and operating stick by attaching a SSK M12 switching stick head
Can be used as earthing stick
Handle closed with plastic plug-in coupling for extending the handle

3 Productos

N.º art. 766100 IS 36 SK STK 1000

GTIN 4013364125117, N.º de arancel aduanero (EU): 82055980, Peso bruto: 900.00 g, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Datos técnicos

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1000 mm
Insertion depth (I_O )	175 mm
For use at	^

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1000 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	300 mm
Insertion depth (I_O )	175 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	Hexagon shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick

Se ha añadido el artículo 766100 a favoritos.

Ir a favoritos

El artículo 766100 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 766122 IS 123 SK STK 2000

GTIN 4013364134249, N.º de arancel aduanero (EU): 82055980, Peso bruto: 1800.00 g, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Datos técnicos

Nominal voltage (U_N )	1 ... 123 kV
Total length (l_G )	2000 mm
Insertion depth (I_O )	200 mm
For use at	^

Nominal voltage (U_N )	1 ... 123 kV
Total length (l_G )	2000 mm
Insulating clearance (l_I )	1300 mm
Handle length (I_H )	500 mm
Insertion depth (I_O )	200 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	Hexagon shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick

Se ha añadido el artículo 766122 a favoritos.

Ir a favoritos

El artículo 766122 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 766111 ISN 36 SK STK 1000

GTIN 4013364137295, N.º de arancel aduanero (EU): 82055980, Peso bruto: 1060.00 g, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Datos técnicos

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1000 mm
Insertion depth (I_O )	175 mm
For use at	_

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1000 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	300 mm
Insertion depth (I_O )	175 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	_
Supporting head for	Hexagon shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick

Se ha añadido el artículo 766111 a favoritos.

Ir a favoritos

El artículo 766111 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

Insulating Stick, T Pin Shaft, Plug-in Coupling

Operating head with spring-loaded bayonet coupling

Can be used as switching and operating stick by attaching a SSK SQ switching stick head
Can be used as operating stick for inserting insulating protective shutters
Can be used as earthing stick
Handle closed with plastic plug-in coupling for extending the handle

3 Productos

N.º art. 766301 IS 36 SQ STK 1000

GTIN 4013364125124, N.º de arancel aduanero (EU): 82055980, Peso bruto: 900.00 g, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Datos técnicos

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1025 mm
Insertion depth (I_O )	150 mm
For use at	^

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1025 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	350 mm
Insertion depth (I_O )	150 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick

Se ha añadido el artículo 766301 a favoritos.

Ir a favoritos

El artículo 766301 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 766322 IS 123 SQ STK 2000

GTIN 4013364134256, N.º de arancel aduanero (EU): 82055980, Peso bruto: 1800.00 g, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Datos técnicos

Nominal voltage (U_N )	1 ... 123 kV
Total length (l_G )	2000 mm
Insertion depth (I_O )	200 mm
For use at	^

Nominal voltage (U_N )	1 ... 123 kV
Total length (l_G )	2000 mm
Insulating clearance (l_I )	1300 mm
Handle length (I_H )	500 mm
Insertion depth (I_O )	200 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick

Se ha añadido el artículo 766322 a favoritos.

Ir a favoritos

El artículo 766322 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 766310 ISN 36 SQ STK 1000

GTIN 4013364137318, N.º de arancel aduanero (EU): 82055980, Peso bruto: 1060.00 g, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Datos técnicos

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1025 mm
Insertion depth (I_O )	150 mm
For use at	_

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1025 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	350 mm
Insertion depth (I_O )	150 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	_
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick

Se ha añadido el artículo 766310 a favoritos.

Ir a favoritos

El artículo 766310 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

Insulating Stick, detachable, T Pin Shaft, Plug-in Coupling

Operating head with bayonet coupling with spring locking mechanism

Can be used as switching stick and operating stick by attaching the switching stick head SSK SQ
Can be used as operating stick for inserting insulating protective shutters
Can be used as earthing stick
Can be used as handle termination with end cap

1 Producto

N.º art. 766332 ISN 123 SQ STK 2500

GTIN 4013364137325, N.º de arancel aduanero (EU): 82055980, Peso bruto: 3.08 kg, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Datos técnicos

Nominal voltage (U_N )	110 ... 123 kV
Total length (l_G )	2495 mm
Insertion depth (I_O )	290 mm
For use at	_
^*) Max. weight of insulating shutters, for example.

Nominal voltage (U_N )	110 ... 123 kV
Max. load on the operating head ^*)	5 kg
Total length (l_G )	2495 mm
Insulating clearance (l_I )	1485 mm
Handle length (I_H )	720 mm
Insertion depth (I_O )	290 mm
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 / 43 mm
For use at	_
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick
^*) Max. weight of insulating shutters, for example.
